SEAFLO 12V Marine Ventilation Fan 320 CFM for Engine Compartments Bilges Galleys
$114.99
Skip to product information
SEAFLO 12V Marine Ventilation Fan 320 CFM for Engine Compartments Bilges Galleys
$114.99
- [ SPECIFICATIONS ]: Model: SFBB1-320-02; Series: 02 Series; Product Type: Flex-mount centrifugal bilge blower; Voltage: 12V DC; Airflow: 320 CFM (550 m³/h); Maximum Current Draw: 11A; Recommended Fuse: 16A; Duct Compatibility: 4 in. (102 mm); Mounting Configuration: Flex mount; Housing: White corrosion-resistant ABS plastic; Intended Application: Ducted marine ventilation.
- [ 4-YEAR WARRANTY ]: Backed by SEAFLO’s four-year warranty for added confidence and long-term product support. The durable ABS housing, sealed motor shaft and corrosion-resistant construction are engineered for dependable service in challenging marine environments when properly installed, operated and maintained.
- [ 4-YEAR WARRANTY ]: Backed by SEAFLO’s four-year limited warranty, providing added confidence and dependable product support for marine ventilation installations. The warranty reflects SEAFLO’s commitment to reliable construction, consistent performance and long-term customer satisfaction for boat, yacht and vessel owners.
- [ 320 CFM HIGH-OUTPUT AIRFLOW ]: The SFBB1-320-02 delivers 320 CFM (550 m³/h) of airflow to support powered ventilation in enclosed marine compartments. Its high-volume output helps move air through a dedicated duct system serving engine compartments, bilges, galleys, marine heads and other enclosed onboard areas

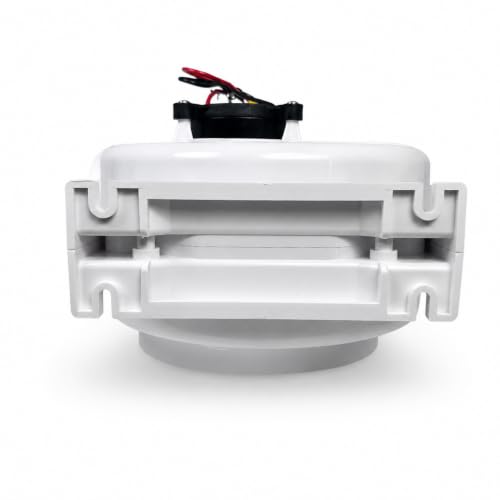

- [ FLEX-MOUNT INSTALLATION ]: The flex-mount configuration allows the blower to be secured to an available flat mounting surface rather than requiring the unit to connect directly to an exterior vent. This provides greater freedom to position the blower around engines, tanks, wiring and structural components in confined marine layouts.
- [ 4-INCH DUCT COMPATIBILITY ]: Designed for use with 4 in. (102 mm) flexible ventilation ducting, the blower supports a ducted connection at both the intake and discharge sides. Flexible hose routing helps connect an enclosed compartment to an exterior ventilation opening when the mounting surface and vent are not directly aligned.

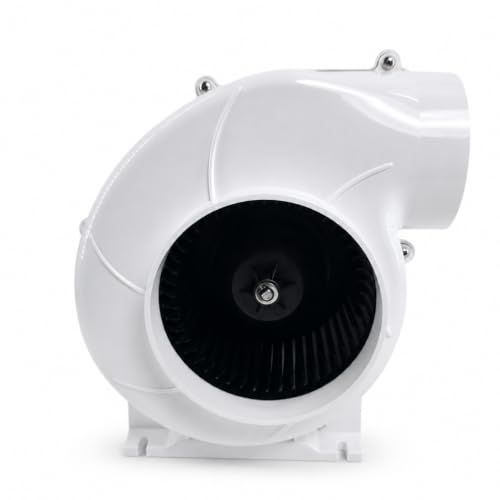

- [ CENTRIFUGAL AIRFLOW DESIGN ]: Air enters through the center intake, moves through the curved centrifugal blower housing and exits through the side discharge. This defined airflow path allows flexible ducting to carry air from the enclosed compartment through the blower and toward the boat’s exterior ventilation opening.
