Runleader 12V to 24V LED Battery Capacity Meter,Monitor of Battery Charge &Discharge,Various Batteries Applicably,Snap-in Mount for Golf Cart Forklift Machine Floor Care Equipment

Brand: Runleader

Color: black

Features:

• BATTERY FUEL GAUGE---- It used on battery powered device to state the current battery capacity,battery capacity in charging and discharging status;Working voltage range:12V to 24V.

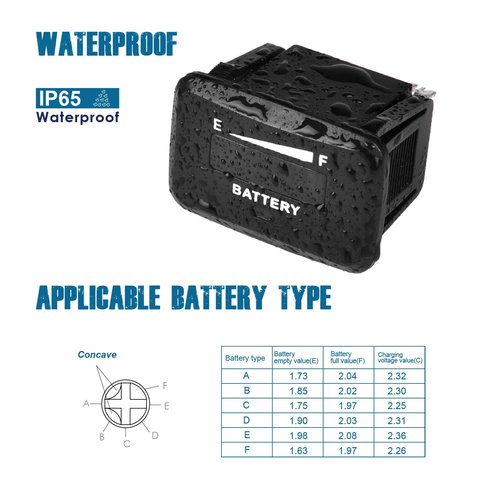

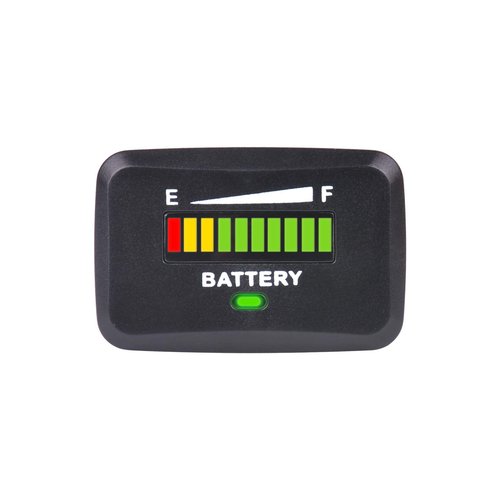

• LED BARS DISPLAY--- When it distinguishing the working voltage automatically, it will display current battery capacity status by 10 LED bars with 3 colors(1 red, 2 yellow,7 green),each bars indicate 10% capacity; it will display the battery capacity in charging status from 1st bar to last bar flashing; Avaliable 6 groups of discharge curve to be selected for different batteries type, battery discharging status will display the bars from last one to 1st.

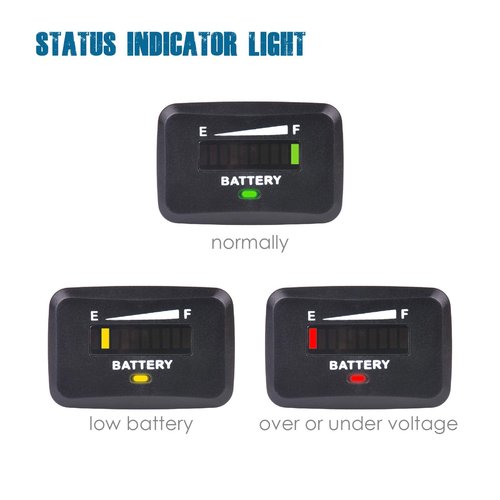

• WORKING STATUS INDICATOR---- You can check the color of the status light to know if it in normal working status: Red flashes---over or under voltage; Yellow flashes---low battery; Green always on---normally.

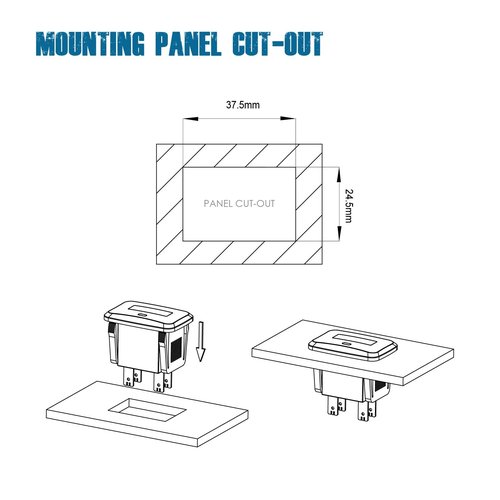

• INSTALLATION ---- Easy to install;Snap-in design with panel cut-out size:Approx 37.5×24.5mm(1.5×1 Inch).
• OTHER ----Waterproof rate: IP65;CE RoHS certification;2-years warranty.

model number: RL-BI0018

Part Number: RL-BI0018

EAN: 0713095428849

Package Dimensions: 2.4 x 2.0 x 1.5 inches
