Step 1

Mount the Red Dot and Magnifier

Torque Specification for both the Red Dot and Magnifier to the mounting platform: ~18 in-lbs or hand tighten plus 1/4 turn. Blue thread locker is advised, but not required.

Note: Distance between the Red Dot and Magnifier should be around <2.0 inches.

Step 2

Sighting the Ghost Red Dot

Flip the magnifier into the disengaged position.

Using the windage and elevation controls, the built-in adjustment tool located on the caps, and your preferred method of sighting, zero the red dot.

Tip: Optimal distance to zero the Ghost 1x20mm red dot is 50 yards. Use a laser bore sight to get on paper.

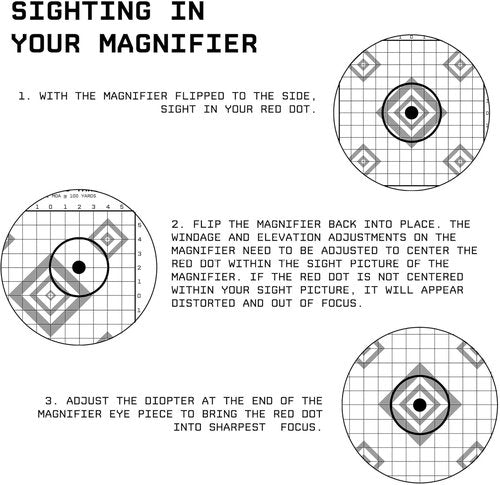

Step 3

Sighting the Ghost Magnifier

Flip the Ghost magnifier back into view.

The Magnifier may not be centered with your red dot which will cause it to look something like the example here. For an optimal view, you will want to zero your magnifier so that the picture is as centered as possible.

Final Tips and Notes

End Result

The end result should look something like the example here.

Note: It is important to zero your magnifier in at the same distance and same time as your red dot for the most optimal results.
