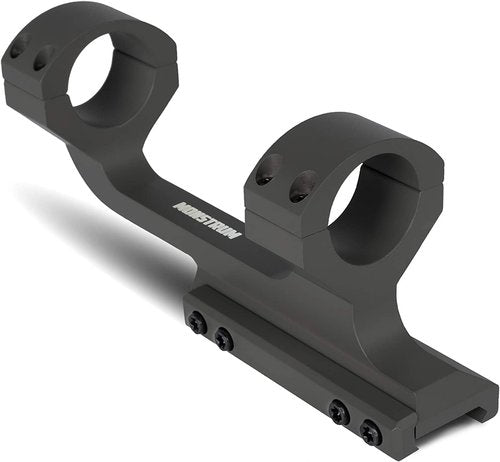

Monstrum Extended Series Offset Picatinny Scope Mount - 30mm Diameter | 20 MOA Precision
Monstrum Extended Series Offset Picatinny Scope Mount - 30mm Diameter | 20 MOA Precision
- Built specifically for long range scopes - 6-24x magnification scopes and above - with 3 inches of spacing between scope rings to accommodate scopes with longer dimensions and larger adjustment housing
- Lightweight one-piece scope mount available for both 1 inch and 30 mm diameter tube rifle scopes - with weight comparable to a set of lightweight rings, while providing the added rigidity and convenience of a one piece mount
- Mounts to any flat top Picatinny rail equipped rifle with custom Picatinny locking bolts that slot seamlessly into your Picatnny rail with zero wiggle - guaranteed to hold zero against the toughest of recoil
- Available in three styles - a 0 MOA mount for zeroing your scope at short to mid range distances, a 20 MOA mount for zeroing your scope at longer distances, and a 30 MOA mount for serious long distance shooters.
- Mount frame crafted from lightweight 6061 grade aluminum with hardened steel Torx mounting hardware to prevent stripping of the bolts
One size does not fit all.
That’s why we designed the Monstrum Extended Series Scope Mounts. The Monstrum Extended Series Scope Mounts are built specifically for long range scopes - 6-24x magnification scopes and above - with longer dimensions and larger adjustment housing. With wider spacing between the two scope rings, the Extended Series Scope Mounts can accommodate scopes with larger segments that will not fit into standard one piece scope mounts.

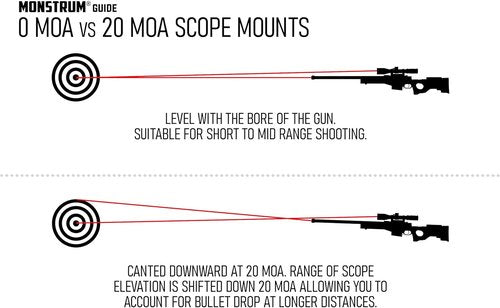

Canted Downward at 20 MOA, the scope elevation is shifted 20 down MOA allowing you to account for bullet drop at longer distances.
Hardened Steel Torx Hardware
The mount is built for standard 30 mm tube scopes for mounting to any standard Picatinny rail equipped rifle.
The mount base mechanism comes equipped with custom Picatinny locking bolts that slot seamlessly into your Picatinny rail with zero wiggle - holds zero against the toughest of recoil.
The mount frame is crafted from lightweight 6061 grade aluminum with hardened steel Torx mounting hardware to prevent stripping of the bolts.
Square Integral Recoil Stops
The Monstrum Extended Series Scope Mount are built from the same platform as our best-selling Slim Profile Series. The design remains light and minimalist. At a mere five ounces, the weight is comparable to a set of lightweight rings, while providing the added rigidity and convenience of a one piece mount. The offset design provides an additional 2.00 inches of forward extension, allowing extra flexibility for optimum eye relief and shooting position.
Technical Specifications
| Compatibility: | 30 mm Scope Tubes |
| Total Length: | 5.50 in |
| Base Length: | 3.00 in |
| Ring Space: | 3.00 in (Distance Between Rings) |
| Centerline Height: | 1.63 in (Center of Reticle to Top of Rifle Mount) |
| Profile Height: | 1.13 in (Base of Ring to Top of Rifle Mount) |
| Forward Extension: | 2.00 in |
| Ring Width: | 0.85 in |
| ZR301/ZR251 Monstrum Slim Series Cantilever Scope Mount | ZR252/ZR302 Monstrum QR Cantilever Scope Mount | ZS308/ME308 Monstrum Extended Series Cantilever Scope Mount | ZR256 Monstrum Pro Series Cantilever Scope Mount | |
|---|---|---|---|---|
|
Buying Options
|
Buying Options
|
Buying Options
|
Buying Options
|
|
| Customer Reviews |
4.6 out of 5 stars 7,841
|
4.4 out of 5 stars 2,803
|
— |
4.5 out of 5 stars 292
|
| Price | — no data | — no data | — no data | — no data |
| Weight: | 5.0 oz | 5.8 oz | 5 oz | 5.6 oz |
| 6061 Aircraft Grade Aluminum: | ✓ | ✓ | ✓ | 7075 Aluminum |
| Hardened Steel Hardware: | ✓ | ✓ | ✓ | ✓ |
| Locking Mechanism: (Mount to Rifle) | Torx Bolts | Torx Bolts | Torx Bolts | Torx Bolts |
| Square Integral Recoil Stops: | ✓ | ✓ | ✓ | ✓ |
| Ring Space: (Distance Between Rings) | 2.4 in | 2.4 in | 2.8 in | 2.8 in |
| Base Length: | 3.0 in | 3.0 in | 3.5 in | 3.0 in |
| ZS105 Monstrum Ultra Series Cantilever Scope Mount | ZS311 Monstrum Cantilever Scope Mount with 45 Degree Red Dot Mount | ZS312 Monstrum Cantilever Scope Mount with Level Bubble | ZS113 Monstrum Razorclaw Series Scope Mount | |
|---|---|---|---|---|
|
Buying Options
|
Buying Options
|
Buying Options
|
||
| Customer Reviews |
— |
4.4 out of 5 stars 151
|
4.5 out of 5 stars 289
|
4.6 out of 5 stars 450
|
| Price | — no data | — no data | — no data | $29.99$29.99 |
| Weight: | 5 oz | 4.6 oz | 6 oz | 3.7-3.9 oz |
| 6061 Aircraft Grade Aluminum: | ✓ | ✓ | ✓ | ✓ |
| Hardened Steel Hardware: | ✓ | ✓ | ✓ | ✓ |
| Locking Mechanism: (Mount to Rifle) | Torx Bolts | Torx Bolts | Torx Bolts | Torx Bolts |
| Ring Space: (Distance Between Rings) | 2.79 in | 2.7 in | 2.7 in | 2.8 in |
| Base Length: | 3.0 in | 3.0 in | 3.0 in | 3.0 in |
