About this item

• MARINE‑GRADE TINNED COPPER: Manufactured from tinned copper stranding for maximum corrosion resistance and long‑lasting performance in harsh marine environments
• ULTRA‑FLEXIBLE TYPE 3 STRANDING: Type‑3 stranding resists fatigue from vibration and flexing, ensuring reliable durability in boats, RVs, and off‑grid systems
• PREMIUM VINYL INSULATION: Rated at 600 volts, with temperature resistance up to 105°C dry and 75°C wet, and designed to withstand saltwater, battery acid, oil, gasoline, abrasion, and UV exposure
• MEETS ALL MARINE STANDARDS: Exceeds UL 1426, USCG Charter Boat CFR Title 46, and ABYC requirements, providing trusted safety and compliance for marine electrical systems

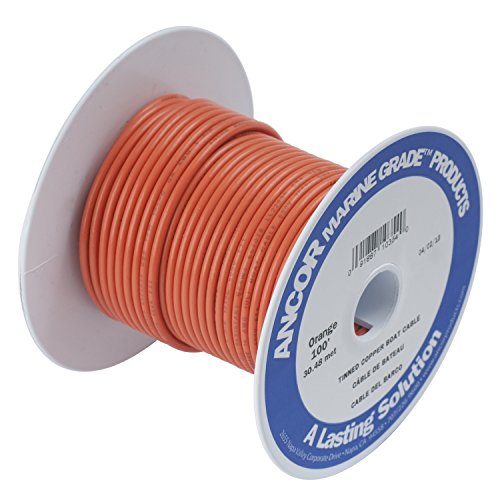

• 12‑GAUGE, 100‑FOOT ORANGE SPOOL: Features a 12 AWG, 100‑ft length with durable orange insulation—ideal for organized and color‑coded wiring installations

Orange 12 AWG Tinned Copper Wire - 100'Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105C dry and 75C wet, stays flexible even in extreme cold (-40F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.Wire Gauge: 12 AWG
