L-faster 24V/36V/48V Bike Throttle Grip Scooter Voltage Indicator Power Key Locker Accelerator (36V)

Brand: L-faster

Color: yellow

Features:

• Brand name : L-faster
• Model : 57XDX (24V 36V 48V)
• Cable length 150CM

model number: YK-B-139

Part Number: l-139

Details: This is one pair of throttle for electric bike.
Brand name : WUXING
Model : 57XDX (24V 36V 48V)
Effiency : ≥98%
Hall Class : Imported Hall quality rubber
Working voltage : Throttle DC 1-4.2 V
Working current : DC 350 mAh

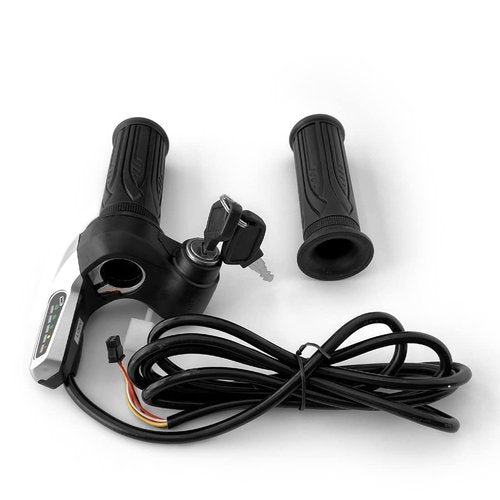

Package included : 1xPair (Throttle+grips+key locker)
Weight: N.W. :350G
Measurement : Length18.5*Width 8*Grip diameter 2.2CM
Features
Cable length 150CM
Battery LED indicator : 5 levers
Key switch locker (2 keys)
Wiring :
thin red cable : +5V
Blue cable : - negative
Green cable : signal
Yellow cable : + positive of key locker
Thick red cable : - negative of key locker

EAN: 0712243221066

Package Dimensions: 7.9 x 6.1 x 3.1 inches
