About this item

• Compatible with: HELIX 5 SI GPS, HELIX 5 CHIRP SI GPS G2, HELIX 7 SI GPS, HELIX 7 CHIRP SI GPS G2, HELIX 7 CHIRP SI GPS G2N, HELIX 9 SI GPS, 899CI HD SI, 798ci HD SI, 798ci SI, 698ci HD SI, 598ci HD SI, 398C SI to the maximum capability of the unit.

Product Description

Transom Mount, Compact Dual/Side Imaging. 20/60/180 degree, 200/83/455 kHz with built-in temperature.

Amazon.com

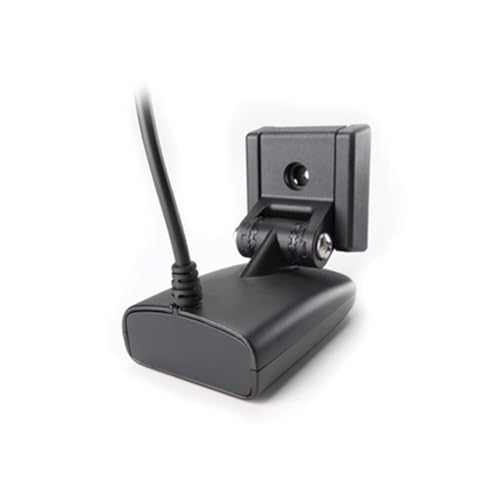

The Humminbird XNT 9 SI 180 T Transom Mount Transducer is a high-speed transducer designed to mount on the transom, or back, of the boat, in contact with the surface of the water, and operate in conjunction with a compatible Humminbird sonar or fish finder system. This unit is combination DualBeam PLUS transducer that features 20- and 74-degree cone angles operating on 200 kHz and 83 kHx frequencies respectively, as well as a side-imaging sonar with two 84-degree beams operating at 455 kHz.

The XHS 9 HDSI 180 T includes a built-in temperature sensor, a 20-foot cable, and all the necessary high-speed hardware to get up and running right away. Although this unit has the same hole pattern as some older-version transducers, it utilizes a new design that is more secure and less prone to kick up at the high force of waves, as well as having an improved running angle, and an optional lock-down screw to override the kick up. The Humminbird XHS 9 HDSI 180 T transducer is specifically designed for use with Humminbird's 797c SI Combo fish finder and other side-imaging sonar systems. This transducer is backed by Humminbird's one-year limited warranty.
