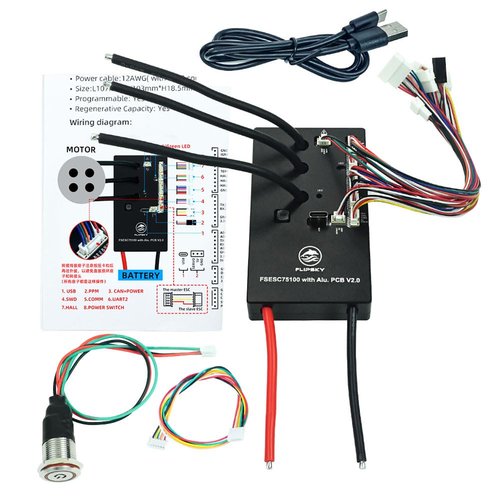

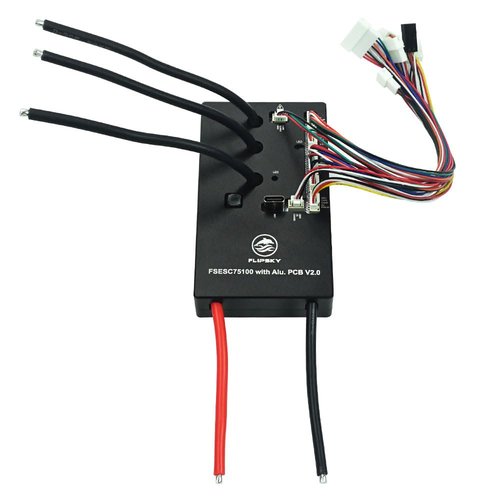

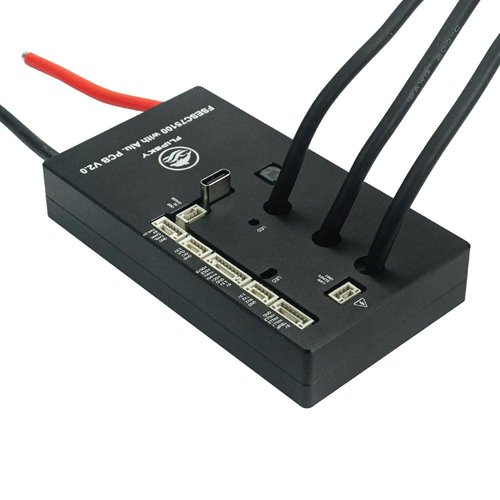

FLIPSKY 75100 V2.0 with Aluminum PCB with Power Switch Button Based on VESC for Electric Skateboard/Scooter/Ebike Speed Controller, 103*58*18.5mm, Black

Brand: FLIPSKY

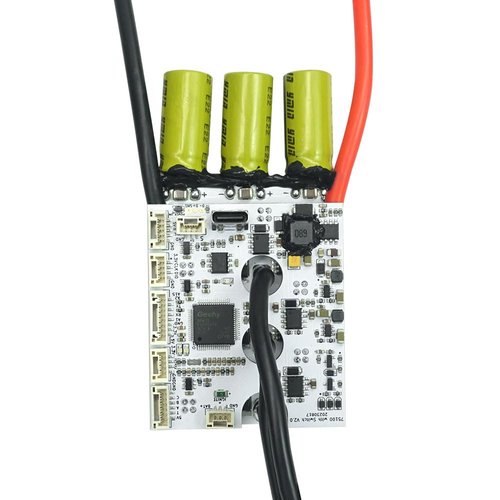

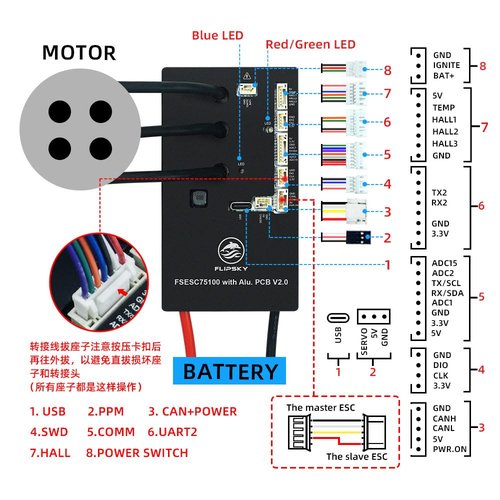

Details: 75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2) with overheat and over current protection, regenerative braking capacity. It's designed with aluminum case, with good heat dissipation and max working voltage can be 20S, 84V. Also, 75100 With Alu. PCB V2.0: supports single serial port function, and integrates power on / off switch and key switch for Ebike / Escooter etc. Specs: Size: 103X58X24mm Voltage:14-84V (4-20S) Continuous Current: 100A Peak Current: 250A Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer) BEC: 5V@1A Modes: DC，BLDC，FOC(sinusoidal) Control Interface Ports: USB,CAN,UART Supported Sensors: ABI，HALL，AS5047，AS5048A Input Set Support: PPM，ADC，NRF,UART Wire Size: 12AWG Programmable: Yes Regenerative Capacity: Yes Power Switch Button: Red

EAN: 0768481812177

Package Dimensions: 5.4 x 4.4 x 2.4 inches
