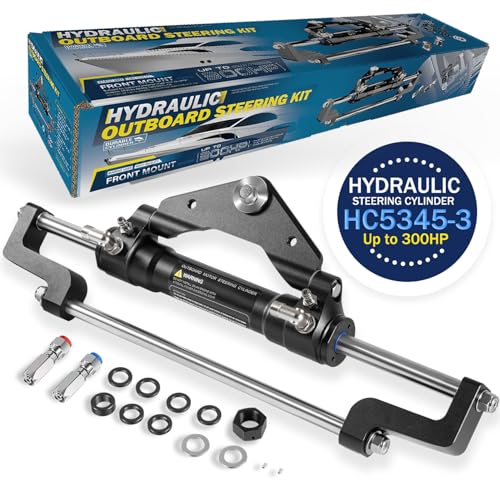

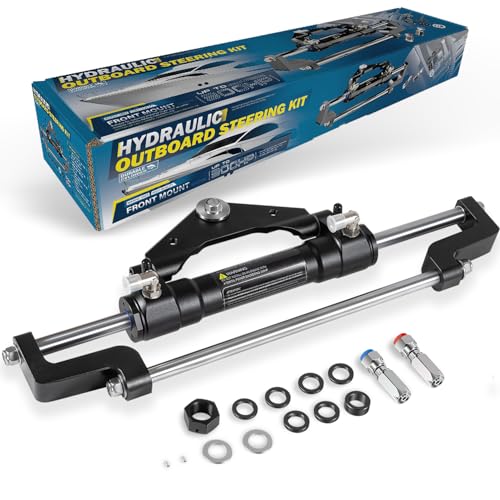

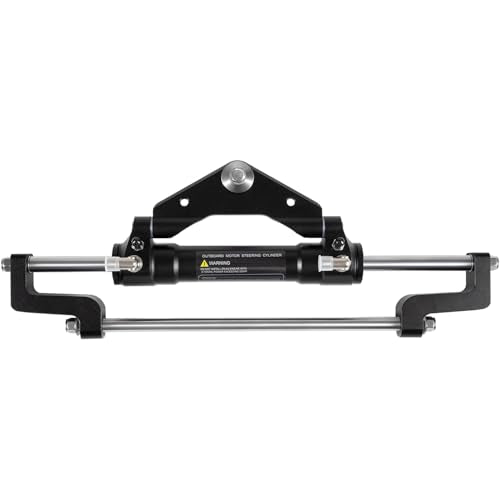

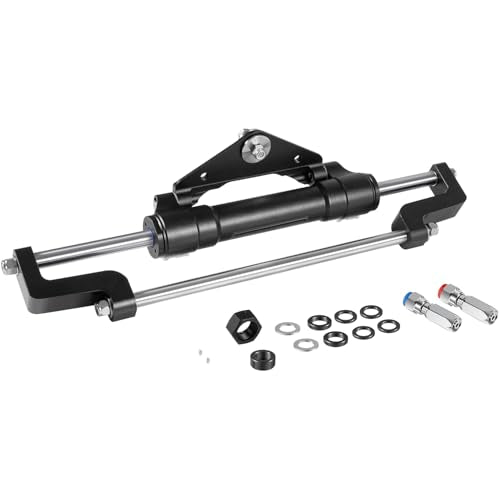

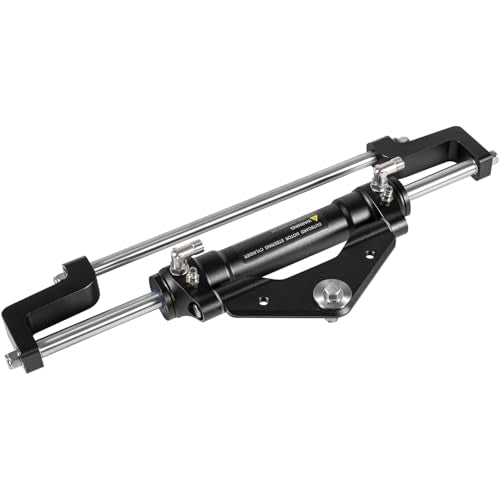

E-cowlboy 300HP Hydraulic Outboard Steering Cylinder HC5345-3 Replacement

• Wide Compatibility：Designed for outboard-powered boats up to 300HP, this steering cylinder fits a variety of vessels, including center console boats, offshore fishing boats, bass boats, flats boats, cruisers, and yachts. It’s the ideal solution for most marine vessels requiring a front-mount hydraulic steering system.
• Perfect OEM Replacement:This product is a direct replacement for SeaStarHC5345-3 steering cylinder, offering the same high-quality performance, but at a more competitive price. Ideal for replacing old, worn-out, or leaking hydraulic steering cylinde.
• Ideal for Single and Twin Engine Setups：This steering cylinder is designed to work efficiently with both single and twin non-power assisted outboard engines, offering effortless steering control for various boat configurations.
• Maximized Performance：With a maximum working pressure of 10.3MPa (1500PSI), this hydraulic steering cylinder is engineered for high-performance handling, ensuring smooth and precise steering even at high speeds or in rough water conditions.
• Built-In Two-Way Lock Valve：The integrated two-way locking valve eliminates rebound torque, providing enhanced stability and control during sharp turns or sudden maneuvers, making it safer to operate your boat in challenging environments.
• High-Strength Aluminum Alloy Construction：Constructed from high-quality, corrosion-resistant aluminum alloy, this steering cylinder ensures durability and resistance to seawater erosion, offering a reliable solution for all marine environments.
• Positionable ORB Fittings：The HC5345-3 steering cylinder comes with positionable stainless steel O-Ring (ORB) fittings, allowing for flexible hose routing and an easy, secure connection that simplifies installation and replacement.

300 HP Outboard Steering Cylinder HC5345-3

Specifications

• Compatibility: Designed for outboard-powered boats up to 300HP, including center console boats, offshore fishing boats, bass boats, flats boats, cruisers, and yachts. Ideal for both single and twin non-power assisted outboard engine setups.
• Maximum Working Pressure: 10.3MPa (1500PSI) for reliable performance in high-pressure marine environments.
• Material:
  • Casing: High-strength aluminum alloy for durability, corrosion resistance, and long-lasting performance.
  • Sealing System: Advanced sealing technology designed to resist repeated compression sets and water leakage, providing superior protection against saltwater corrosion.
• Valve Type: Built-in two-way lock valve to eliminate rebound torque during sharp turns and sudden maneuvers, enhancing stability and control.
• • Mounting: Front mount, compatible with most outboard motors.
• Fittings: Includes positionable stainless steel O-Ring (ORB) fittings for flexible hose routing and secure installation.
• Engine Compatibility: Suitable for single or twin engine configurations with a tilt angle compatible for twin/triple engine installations.
• Temperature Range: Operates effectively in temperatures ranging from -40°F to 176°F (-40°C to 80°C), suitable for various environmental conditions.
• Performance Features:
  • Provides smooth and responsive steering control, even at high speeds or in rough water.
  • Ensures precise turning and steering efficiency for optimal boat handling.
• Replacement Compatibility: Direct replacement for SeaStar HC5345-3 hydraulic steering cylinder. Provides a high-performance alternative with superior durability.
