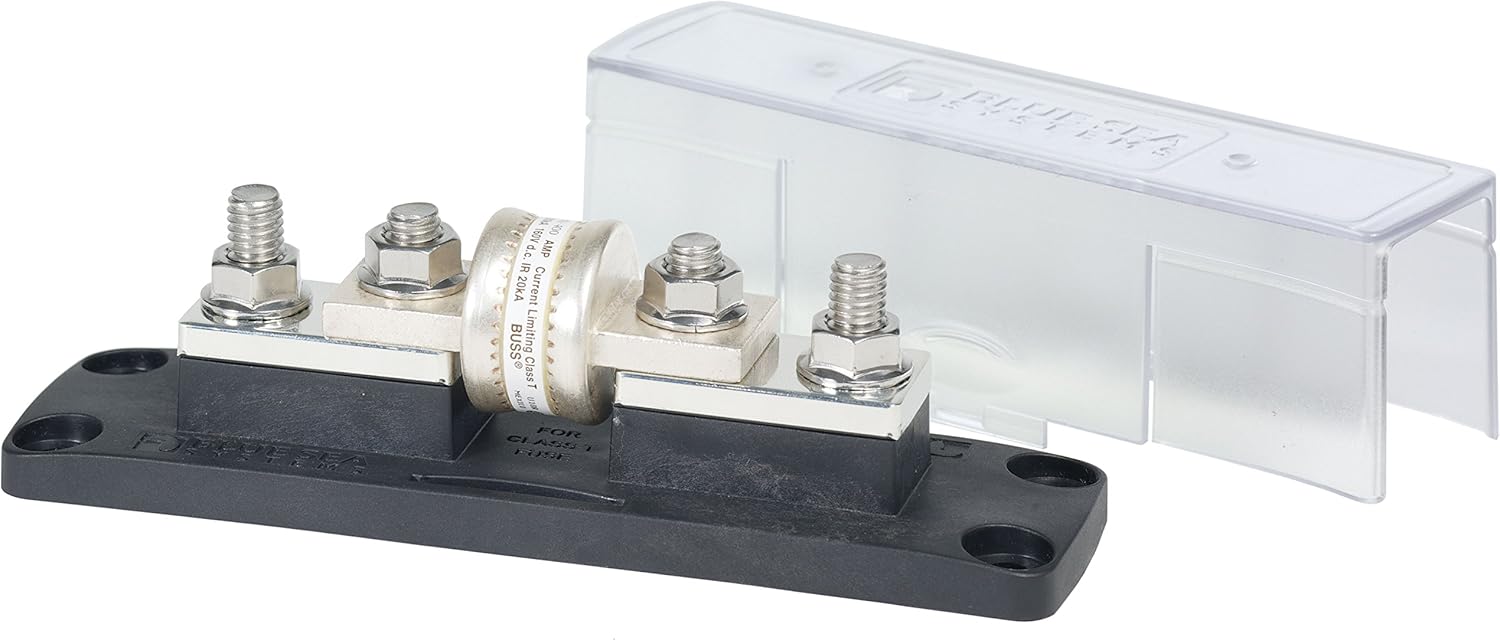

AMRB-5502 Blue Sea Class T Fuse Block - Insulating Cover, 225 to 400A Capacity

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits. Clear insulating cover, satisfies ABYC/USCG requirements. For use on systems up to 160 Volts DC
• Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG. Large heat dissipating tin-plated copper mounting blocks. Two # 8 accessory terminals located on each end. Specifications
• Maximum Amperage: 400A. Maximum Voltage: 160V DC. Fuse Mounting Blocks: Tin-Plated Copper
• Maximum Cable Size: 4/0 AWG. Maximum Torque: 190 in-lb (21.47 Nm). Mounting Holes: Accept 1/4 (M6) Screw
• Terminal Stud Size: 3/8-16 (M10). Weight: 1.10lb (0.5 kg)

Blue Sea Systems Class T Fuse Block w/ Insulating Cover - 225 to 400A The fuse system recommended by most inverter manufacturers for high speed response to short circuits Clear insulating cover, satisfies ABYC/USCG requirements For use on systems up to 160 Volts DC Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG Large heat dissipating tin-plated copper mounting blocks Two # 8 accessory terminals located on each endSpecifications Specifications: Maximum Amperage: 400A Maximum Voltage: 160V DC Fuse Mounting Blocks: Tin-Plated Copper Maximum Cable Size: 4/0 AWG Maximum Torque: 190 in-lb (21.47 Nm) Mounting Holes: Accept 1/4 (M6) Screw Terminal Stud Size: 3/8-16 (M10) Weight: 1.10lb (0.5 kg)
