84V 8A Li-ion Battery Smart Charger with Cooling Fan Used for 20S 72V 1000W Motor 72 Volt Lithium Battery Charger Jumper Cables with Alligator Clips

Brand: TANGSPOWER

Color: Clip

Features:

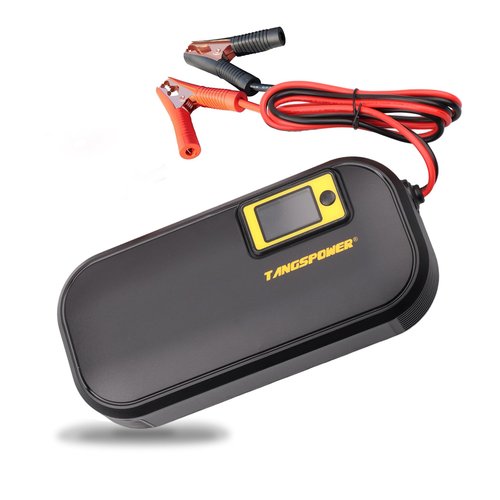

• Input: 100~240Vac, 50~60Hz 7.5A Max ; DC Output: 84Volt / 8 Amp. DC Connector by default is sent : Jumper Cables with Alligator Clips, Provide 1* US standard power cable.

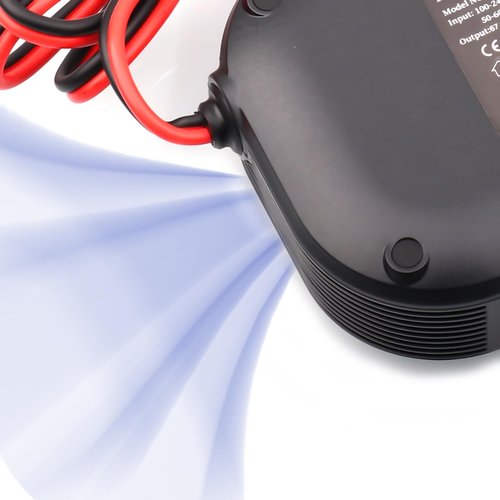

• This smart charger has a full shutdown/external battery detection function, so in the case of no load output, using a multimeter to detect the voltage of the charging port is not correct. Beautiful and durable, Designed with cooling fan, better heat dissipation during charging. Safety and longer life span.

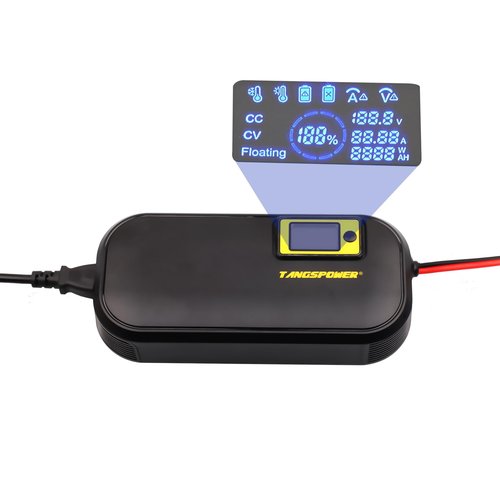

• The LCD screen displays the charging status,can display the curent charging voltage/current/power/charging capacity,and can set the charging current.
• LCD indicator Screen. No need to worry about when to turn off the charger, it will automatically stop charging when fully charged. The charging current defaults to the maximum value 8A. Manual adjustment of the charging current according to your needs.

model number: TP-672W-840080

Details: Charger Introduction
Brand Name: TANGSPOWER
Model Number :TP-672W-840080
AC Input Voltage :100~240Vac 50~60Hz
DC Output Voltage :84 Volt
DC Output Current : 8 Amp

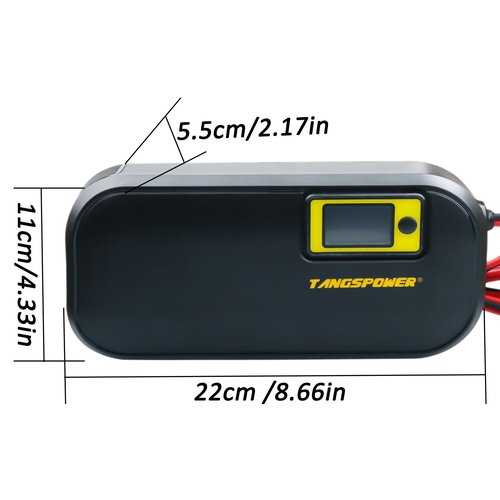

Dimension :8.66*4.13*2.17in
Net Weight :3.68lbs
Suitable Battery Type:20S 72V Li-ion battery(S=Series Connection)
Efficiency: ≥85%
Package Contents
1* Battery Charger

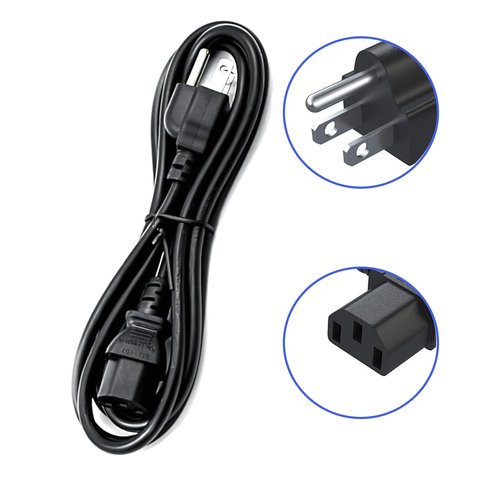

1* US standard power cable
1* Operating manual

Using Environment
Place the charger on a flat surface.The location of the chargershall meet the following standards:keep the ambient temperature with in -10°C~45°C.
Keep dry and away from moisture or water. Maintain ventilation and do not place objects around or on the charger.
Keep it cool,do not expose it to direct sunlight,and do not place the charger near any heat generating devices.Keep away from all flammable materials.

Product Features
1.100-240VAC full voltage input range,high power factor,PF>0.99.
2.Efficient LLC+synchronous rectification scheme,with the highest AC-DC conversion efficiency>94.5%.
3.The LCD screen displays the charging status,can display the curent charging voltage/current/power/charging capacity,and can set the charging current.

Warning
Do not allow children to use.
Do not wet the device.
Do not touch the power plug with wet hands.
Do not connect the output in parallel with the power supply.
Do not disassemble or modify the product without authorization.
Do not place sticks or other metal objects in vents or other openings.
Do not damage the output socket or power cord.
Do not operate the product in high temperature and high humidity environments.
Do not use this product in a common ground power system.
Do not use in medical devices without testing.
Do not charge the charger with mismatched batteries,otherwise there is a risk of fire.
Keep well ventilated.Do not place in areas where flammable gases can be generated.Do not allow volatile or combustible substances to enter the product.

Package Dimensions: 11.8 x 8.3 x 2.6 inches
